Mastering the Art of Ceramic Machining: Techniques and Innovations

Ceramic machining, also called ceramic fabrication or engineering, encompasses various methods to produce high-precision ceramic components. Its goal is to achieve tight tolerances, smooth finishes, and complex geometries for applications ranging from medical implants to electronics. It also enables the customization of components to meet specific functional requirements.

With over 65 years of experience in ceramic fabrication, Quartzite has established itself as a leader in the industry. Our team leverages cutting-edge technology and meticulous craftsmanship to consistently deliver superior-quality ceramic components. We also prioritize customer satisfaction by offering comprehensive support throughout manufacturing.

Basic Principles of Ceramic Machining

Understanding the following principles is fundamental for effectively machining ceramics and producing high-quality components:

Material Properties

Ceramics possess distinct physical and chemical properties that differentiate them from other commonly machined materials. Key characteristics include high hardness — often surpassing that of metals — making them resistant to abrasion and wear. Additionally, ceramics are typically brittle, meaning they are prone to fracturing under tensile stress.

Tool Selection

Due to ceramics' hardness, traditional machining tools used for metals are often ineffective and prone to rapid wear. Specialized tools made from materials such as diamond or carbide are commonly employed for ceramic fabrication. They are selected based on their ability to withstand the high forces encountered during cutting and their compatibility with the specific ceramic material.

Lubrication and Cooling

While ceramics are inherently resistant to forms of wear, they can still be susceptible to thermal damage during machining. Cooling and lubrication are essential to dissipate heat generated at the cutting interface and prevent localized overheating. Water-based coolants or compressed air are used for cooling purposes in ceramic fabrication.

Surface Finish

Achieving the desired surface finish is critical in ceramic fabrication, particularly for projects requiring tight tolerances or aesthetic appeal. Various factors influence the surface finish, such as tool wear, cutting parameters, and post-processing techniques. Grinding and polishing are commonly employed to improve surface finish and dimensional accuracy.

Tolerance Control

Ceramics require precise dimensional tolerances to meet functional requirements in applications such as aerospace, electronics, and medical devices. Achieving and maintaining tight tolerances requires careful control of machining parameters, tool wear, and process stability. This necessitates the implementation of rigorous quality assurance measures throughout the machining process.

Machining Techniques for Ceramics

Here are the most commonly used machining techniques for ceramics:

1 Grinding

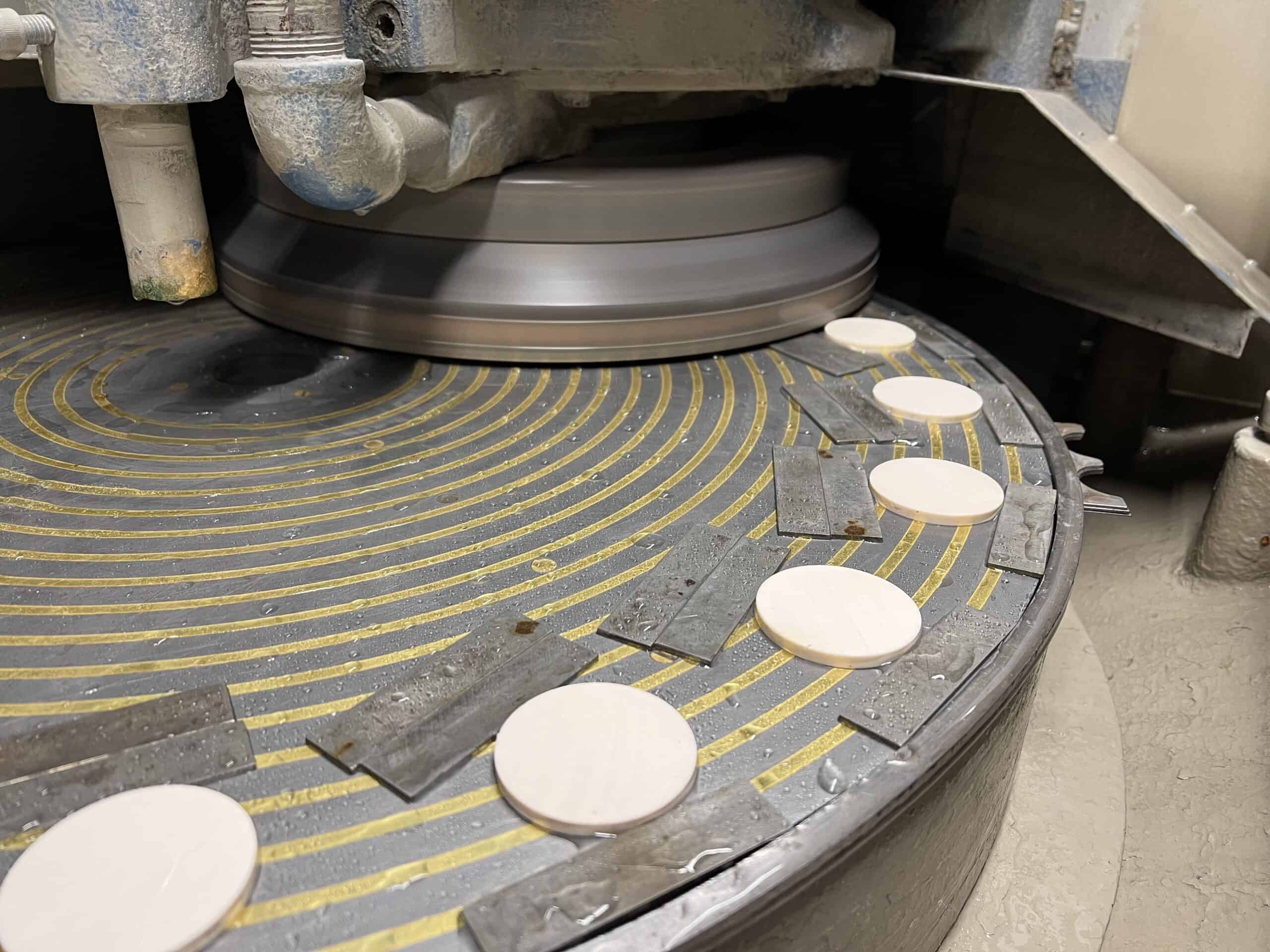

Grinding uses abrasive particles to remove material from the workpiece, resulting in precise shaping and finishing. Various processes — such as surface grinding and centerless grinding — can be employed depending on the desired geometry and surface finish requirements.

2 Milling

In ceramic fabrication, milling operations may include face milling, peripheral milling, and slotting to achieve specific shapes and features. High-speed machining techniques enhance productivity and surface finish quality while minimizing tool wear.

3 Drilling

Drilling is the process of creating holes in ceramic components using rotary cutting tools called drills. Specialized drill geometries and cutting parameters are employed to penetrate the hard and brittle ceramic material without causing damage.

4 Turning

Turning is a machining process in which the workpiece is rotated while a single-point tool removes material to create cylindrical or conical shapes. Due to their hardness and wear resistance, carbide or diamond-tipped inserts are commonly used in ceramic turning.

5 Electrical Discharge Machining (EDM)

EDM is a non-traditional technique for shaping electrically conductive materials, including certain ceramics. It can be particularly useful for machining ceramics with high hardness and brittleness that are challenging to process using conventional methods.

6 Laser Machining

Laser machining utilizes high-energy laser beams to selectively remove material from ceramic pieces. This non-contact process offers advantages such as high precision, minimal tool wear, and the ability to process intricate geometries.

Machining Tolerances

Listed below are other techniques that manufacturers use in ceramic fabrication:

Abrasive water jet machining (AWJM):

This utilizes a high-pressure stream of water mixed with abrasive particles to erode ceramic material and shape components.

Chemical machining:

This selectively removes material from ceramic surfaces using chemical etchants or solutions like acids, bases, or complexing agents.

Freeze casting:

This is a novel technique for fabricating porous ceramic materials with hierarchical microstructures and controlled porosity.

Gelcasting:

This is a near-net-shape forming technique used to produce ceramic components with complex geometries and controlled porosity.

Hybrid machining:

This strategically combines multiple machining techniques to capitalize on the advantages of each method.

Hot isostatic pressing (HIP):

This consolidation technique is used to improve ceramic materials' density, mechanical properties, and uniformity.

Sol-gel processing:

This is a versatile technique for synthesizing ceramic materials from molecular precursors in solution form.

Ultrasonic machining (USM):

This employs high-frequency vibrations generated by a tool to remove material from ceramic workpieces through abrasive action.

Emerging Trends and Developments in Ceramic Fabrication

The following trends and developments are reshaping the landscape of ceramic fabrication:

Additive Manufacturing (AM)

Additive manufacturing or 3D printing is revolutionizing ceramic machining by enabling the direct production of complex geometries and customized components. Stereolithography, binder jetting, and selective laser sintering allow precise control over material deposition, layer-by-layer construction, and design flexibility.

Digitalization and Smart Manufacturing

Integrating digitalization, automation, and data analytics transforms ceramic fabrication into smart manufacturing processes. Digital design tools, simulation software, and predictive analytics facilitate rapid prototyping, virtual testing, and optimization of ceramic components' designs and manufacturing processes.

Functionalization and Surface Engineering

Functionalization and surface engineering techniques enhance ceramic materials' performance, functionality, and properties for specific applications. Surface treatments such as coatings, ion implantation, and chemical modifications can improve ceramic components' wear resistance, corrosion resistance, and biocompatibility.

Multi-Material Integration

Integrating multiple materials — including ceramics, metals, polymers, and composites — enables the development of hybrid structures with tailored properties. Joining techniques like brazing, diffusion bonding, and laser welding are being used to bond ceramic components to dissimilar materials. This creates multifunctional assemblies for diverse applications.

Sustainable Practices

Adopting sustainable practices in ceramic fabrication is becoming increasingly important to reduce ecological impact, conserve resources, and meet regulatory requirements. Manufacturers are exploring eco-friendly materials, such as recycled ceramics and bio-based additives, to minimize waste and energy consumption throughout production. They also implement energy-efficient technologies and optimize manufacturing processes to reduce carbon emissions.

Choose Quartzite for Your Machining Needs

At Quartzite, we prioritize your machining needs by delivering unparalleled expertise, precision, and reliability! We combine cutting-edge technology with meticulous craftsmanship to ensure that every component meets the highest standards of accuracy and performance. We also provide comprehensive support throughout the manufacturing process, from design consultation to final product delivery.
